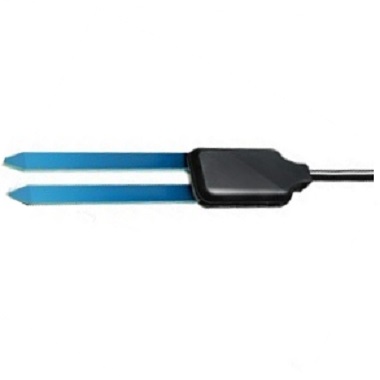

EC-5 miniature soilmoisture sensor
TheEC-5 sensor can measure the volumetric moisture content (soil moisture) of theculture medium and soil. Due to the high-frequency characteristics of EC-5, itgreatly reduces the influence of electrical conductivity (EC) and soil textureon its reading, which is applicable to all soil types; The high measurementfrequency also improves the accuracy and range of the sensor.
Technical indicators
Accuracy: Mineral soil: ± 3% VWC (EC<8 dS/m); ± 2%VWC after individual calibration
Resolution: Mineral soil: 0.1% VWC; Growth substrate:0.25% VWC
Range: depends on the calibration range; Up to 0-100%VWC
Measurement time: 10 ms
Power supply: 2.5-3.6 V DC @ 10 mA. Calibrationequation supports 2.5 V and 3 V
Size: 8.9 x 1.8 x 0.7 cm
Probe length: 5cm
Working temperature: -40~50 ℃
Cable length: standard 5m; Customizable in otherlengths, up to 40m in length
Interface type: 3.5mm stereo interface or 3-head tinplated bare wire
Output: 10% -40% of excitation voltage (250-1000 mV @2500 mV excitation voltage)
Support data acquisition: Meter data acquisition (ZL6series); Other data acquisition devices capable of collecting 3-15 VDCexcitation and single terminal voltage measurement signals, with a resolutionof no less than 12 bits.
